Geotech In-line Acrylic Filter Holders
& Barrel Filter Holder

Geotech In-line Acrylic Filter Holders are specifically designed for on-site, rapid filtration of surface or groundwater samples through large diameter flatstock filter membranes.

The Geotech Barrel Filter Holder is designed for on-site, manual filtration of surface or groundwater samples using a 0.45μm, 102mm diameter flatstock filter membrane.

Acrylic Filter Holders

  • 102 mm and 142 mm filter membrane sizes
  • Nylon or stainless steel bolt versions

Barrel Filter Holder

  • Ideal for use in areas where a power supply is not available and in-line filtration is either impractical or impossible.
  • Excellent option when standard, non-pressurized bailers are used for sample collection.
ACRYLIC IN-LINE FILTER HOLDERS
Filter Holder Plates   Acrylic
Dispersement Discs   Polycarbonate
Inlet/Outlet Fitting Material   Polyethylene
O-ring   F.D.A. approved silicone
Filter Support Screens   Polyester mesh with vinyl border
Pressure Relief Valve   Nylon with external stainless steel pegs
Legs   Nylon with non-skid feet
Inlet/Outlet Fittings   ⅜" NPT by ⅜" hose barb
Maximum Pressure   35 psi (7-15 psi generally recommended for 0.45μm filtration)
Maximum Temperature   135°C (can be autoclaved)
Maximum Liquid Temperature   80°C
102 mm Filter Holder
Filter Membrane Size   102mm diameter (only)
Filter Area   3.49" (88.86mm) diameter
Total Height with Legs   13.25" (33.6cm)
Combined Height of Plates   1.75" (4.45mm)
Nylon Nut and Bolt Height   2.9" (73.7mm) when engaged
Clamping Device   3 swing-a-way bolts (nylon or stainless steel)
Approximate Shipping Weight

  3.0 lbs. (1.4 kg) nylon bolts
3.5 lbs. (1.6 kg) stainless steel bolts
142 mm Filter Holder
Filter Membrane Size   142mm diameter (only)
Filter Area   4.8" (122.17mm) diameter
Total Height with Legs   13.5" (34.3cm)
Combined Height of Plates   1.70" (43.3mm)
Nylon Nut and Bolt Height   2.9" (73.7mm) when engaged
Clamping Device   6 swing-a-way bolts (nylon or stainless steel)
Approximate Shipping Weight

  4.4 lbs. (2 kg) nylon bolts
5.6 lbs. (2.5 kg) stainless steel bolts

BARREL FILTER HOLDER
Filter Membrane Size   102mm diameter (only)
Pre-filter Size   90mm diameter
Barrel Body   Polycarbonate
Filter Holder Plates   Acrylic
Barrel Body Top Plate   Acrylic
"L" Retaining Pins   Nylon
Disbursement Disc   Polycarbonate
O-ring   F.D.A. approved silicone
Filter Support Screen   Polyester mesh with vinyl border
Quick Disconnect Assembly   Acetal
Top Plate Plug   Polypropylene
Inlet/Outlet Fitting Materials   Polypropylene
Pressure Relief Valve   Brass
Tubing   Medical grade silicone
Capacity   Up to 2.4 liters (2 liters recommended)
Inlet/Outlet Fittings   ⅜" NPT by ⅜" hose barb
Maximum Pressure   30 psi max. (7-15 psi recommended)

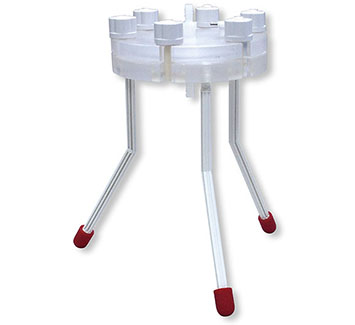

142mm Acrylic In-Line Filter Holder
Geotech 142mm Acrylic In-Line Filter Holder with Nylon Bolts
102mm Acrylic In-Line Filter Holder
Geotech 102mm Acrylic In-Line Filter Holder
with Stainless Steel Bolts

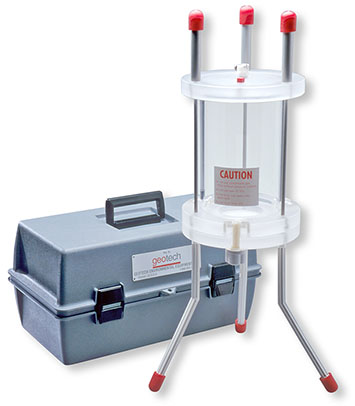

Geotech Barrel Filter Holder
Geotech Barrel Filter Holder
