Geotech BP Controller 300/500 PSI

The simple-to-use Bladder Pump (BP) Controller (300 or 500 PSI) utilizes accurate microprocessor-controlled fill/discharge timers to sustain true low-flow sampling techniques. Both Controllers are equipped with high-pressure valves and fine resolution regulators that can perform in deep-well applications.

The Geotech BP Controller universally connects to any bladder pump system using simple quick-connect adapters.
The BP 300 controller can also operate two bladder pumps simultaneously with an optional airline splitter.

  • Designed for durable, trouble-free operation
  • High pressure operation for greater depths
  • Multiple power input options
  • Microprocessor controlled timers for accuracy
  • Internal over-pressure protection
  • Battery over-draw protection
  • Water Level Meter compatibility for well draw-down
  • Intuitive user controls and status indicator
  • Accessories cavity for easy portability
  • Included: Air-In and Air-Out Hoses, AC Power Supply, DC Power Cord and Clip Adapter,
    Geotech Drawstring Bag, Carry Case
  • Optional 2-pump airline splitter
    300 PSI 500 PSI
Performance
Operating Depth   0-690 feet (210 m) 0-1000 feet (0-305 m)
Input Air Pressure
   Up to 300 psi (20.5 bar) 100 to 500 psi (34 bar)
FILL Timer Range
   5-120 seconds 5-180 seconds
DISCHARGE Timer Range   5-120 seconds 5-180 seconds
Timer Resolution   2 seconds 2 seconds
Timer Accuracy   ±2 seconds ±3 seconds
12V 8Ah Battery Life   1,300 cycles @ 30 sec. timers 50,000 cycles
Internal Battery/Life   External only (2x) 9V/30,000 cycles
Environmental
Operating Temperature   32°-158°F (0°-70°C) 32°-158°F (0°-70°C)
Storage Temperature   -40°-185°F (-20°-85°C) -40°-185°F (-20°-85°C)
Physical
Enclosure   7" x 16" x 12" (18 x 41 x 30.5 cm) 7" x 19" x 14" (18 x 48 x 35 cm)
Weight   15 lbs. (6.8 kg) 25 lbs. (11.4 kg)
Enclosure Material   Structural resin Structural resin
Input Power
External Battery   10.5-13.8V DC 10.5-26V DC
AC   90-240V AC* 90-240V AC*
Line Frequency   45-65 Hz 45-65 Hz
Maximum Power   15 Watts 15 Watts pulse for 50mS

*International AC Power Plug Adapters available (UK, AUS, EURO)
CE

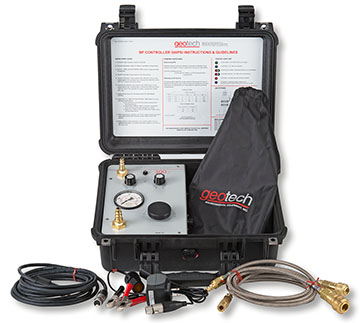

Geotech BP Controller 300 PSI
Geotech BP Controller 300 PSI
Geotech BP Controller 500 PSI
Geotech BP Controller 500 PSI

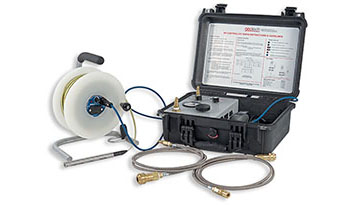

BP Controller 300 PSI with draw-down control
BP Controller 300 PSI with optional draw-down control
for low-flow sampling
