Geotech Air Sparge Systems

Geotech Air Sparge Systems are designed to provide positive air pressure into the subsurface thus aiding the volatilization and biodegradation process associated with soil vapor extraction technology.

By injecting air directly into the groundwater, Geotech Air Sparge Systems remediates groundwater by volatilizing contaminants and enhancing biodegradation. Contaminants are removed from groundwater by physical contact with air and are carried up into the unsaturated zone (i.e., soil). As the contaminants move into the soil, a Geotech provided soil vapor extraction system (SVE) can be used to remove vapors from the subsurface.

Geotech custom designs and builds the following types of air sparge systems to be effective for your site requirements.

Positive Displacement
Blower Package

The Geotech positive displacement blower systems are custom designed to meet your air flow and air pressure requirements where pressure ranges are within 15 psig (1 bar) and flow rates up to 2085 cfm (59 cmm).

Positive displacement rotary lobe blower
Inlet air filter
Discharge silencer
TEFC motor
Horizontal inlet silencer
V-Belt drive system
OSHA belt drive
Motor slide base
Interconnecting fittings
Discharge pressure gauge
Pressure relief valve
Discharge temperature gauge
Discharge check valve

Call 1.800.833.7958

Positive Displacement Blower Specifications
Air Sparge Installation and Operation Manual

Rotary Claw Compressor Systems

Geotech rotary claw compressor systems are custom designed to meet your air flow and air pressure requirements where rotary lobe and rotary vane systems can not economically meet the discharge flow/pressure requirements, for example over 30 cfm (.85cmm) and pressure ranges of 15-30 psig (1-2 bar).

TEFC motor
Heavy duty rotary claw compressor
Compact size
Low maintenance

Call 1.800.833.7958

Rotary Claw Compressor Specifications
Air Sparge Installation and Operation Manual

Rotary Vane Blower

Rotary vane compressors with coupled motors. Delivery of oil-free air into the subsurface.

Pulse-free air flow
Heavy-duty filters
Inlet particulate filter
TEFC motors

Call 1.800.833.7958

Rotary Vane Blower Specifications
Air Sparge Installation and Operation Manual

Ingersoll Rand UP Series TAS Rotary Screw Air Compressors

UP6-5-15c TAS 80 Gal.

Geotech offers Ingersoll Rand oil lubricated, rotary screw air compressors to provide positive air pressure for powering pneumatic equipment as well as for continuous use applications such as air sparging.

Ingersoll Rand UP Series rotary screw compressors provide "best in class" performance in rotary screw technology.

Each compressor package comes standard with:

230/460-3-60 ODP electric motor
Air-cooled aftercooler to reduce discharge air temperatures
Full voltage motor starter mounted and wired (wired for 230-3-60 voltage standard)
Dual control (AS&S and constant speed control)
Low sound/full sheet metal enclosure
Package pre-filter
9000-hour rated Ultra Plus coolant
Spin-on oil filter and separator element
A.S.M.E. coded horizontal receiver tank with manual drain
NEMA-1 electrical protection

Call 1.800.833.7958

Rotary Screw Air Compressor Specifications

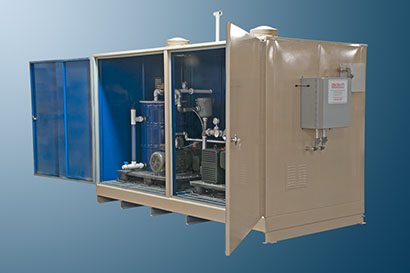

Rotary Claw Compressor System

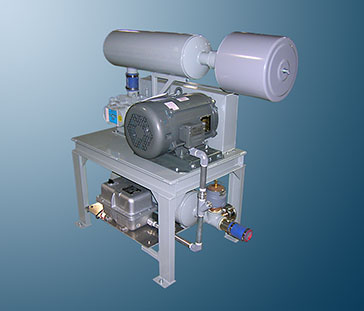

Positive Displacement Blower System
